Sub-Zero Classic Series (BI, CL) Anti-Tip Bracket
Topics:
- Instruction sheet 7015278
- Part number 7009311
- List of components included with 7009311
- Install the anti-tip brackets for the Classic Series (BI, CL)
Answer:

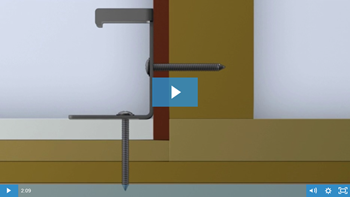

Classic Series (BI, CL) Anti-Tip Brackets (7009311) Installation Instructions detail the installation process.
- Refer to the product Installation Guide for more anti-tip bracket installation information.
- The anti-tip bracket measures 3-1/2" H x 3" W x 2-3/4" D.
- For flooring other than wood or concrete (tile, linoleum, other flooring material, etc.) as long as there is access to the floor joists or beams, use the regular wood flooring installation instructions.
- If the opening is deeper than standard 24", a contractor needs to build out from the wall or floor with a material that can accept the anti-tip bracket and hardware.
Contact a Factory Certified Parts Distributor to order parts.
