Topics:

• What does Insert Water Spout mean on the EC2450?
• Why does the EC3050 Coffee System say Insert Water Spout?

Cause

• Hot water spout not inserted correctly
• Damaged hot water spout
• Hot water and steam spout microswitch circuit is faulty

Troubleshooting

1. Remove the water spout by grabbing the verticle tab and pulling straight out from receptacle.
2. Verify the water spout is clean and free of debris.
   • Gently rinse the water spout under cold running water if needed.
   • Dish soap may be use sparingly if needed.  Be sure to rinse thoroughly if used.
3. Install the water spout over the receptacle until two beeps are heard. See image below.
   • There are two position switches inside the water spout receptacle.
   • The Coffee System will not recognize the water spout unless it is inserted far enough to make contact with both switches.
4. Inspect water spout for cracks.
5. If these steps do not resolve the issue, no further troubleshooting advice is available. Contact Factory Certified Service to schedule an appointment for repair.

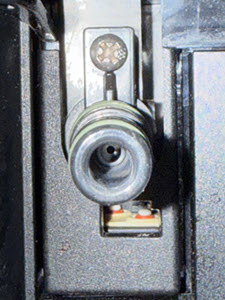

Position Switch Image:

The position switches are the red and white buttons.

Refer to the product Use and Care Guide for further information.

Replace Water Spout:

• Replacement water spouts can be purchased using part number 830189.
