Gas, Dual Fuel, and Induction Range Anti-Tip Mechanism

Topics:

  • Where is the anti-tip bracket packaged in the box when shipped with a Dual Fuel (DF), Induction Range (IR), or Gas Range (GR)?
  • Where is the mounting hardware for a DF, IR, or GR anti-tip bracket?
  • How is the anti-tip bracket installed on a Legacy Dual Fuel or Gas Range?
  • Why are Dual Fuel Ranges and Gas Ranges now supplied with a new anti-tip mechanism?
  • Why did the anti-tip bracket change for ranges?
  • Anti-tip label visible with the door closed

Answer:

Regulating agency standards required the anti-tip mechanism for Gas and Dual Fuel Ranges to change. The current anti-tip bracket provided with Wolf ranges provides a safer way to prevent the unit from tipping forward.

  • A metal plaque label was added to the bullnose, showing the new location of the anti-tip bracket; do not remove this label.
  • Wolf suggests the anti-tip devices should always be installed for safety reasons.

Part Shipping Location

  • The anti-tip bracket is shipped in the foam wedge that is part of the cavity kit box that ships in the oven.
  • The anti-tip bracket is zip-tied to the rear of the GR, Legacy Dual Fuel, and Legacy Induction Range.
  • Installation hardware is placed in the styrofoam containers that house the grates and burner caps.
  • The bolt in the left rear corner underneath the range is installed when the unit is shipped.

Part Numbers and Mechanism

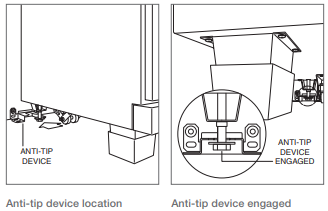

The bolt engages with the mechanism that is attached to the floor and/or back wall with the supplied hardware to prevent tipping.

For a complete list of parts, refer to table below.

  • For current Dual Fuel and Induction Ranges, order part number 829936.
    • The bolt is available on its own using part number 9027407.
    • The washer for the bolt is part number 6240050.
  • For Legacy Dual Fuel Ranges, refer to the chart below for bracket part numbers.
    • The bolt is available on its own using part number 820609.
    • The washer for the bolt is part number 807007.
  • For R Gas Ranges, order part number 821262.
    • Both these kits contain the proper hardware needed to attach the anti-tip assembly.
    • These kits will work with any range if ONLY the bolt or washer is needed.
    • For any other missing pieces, order the appropriate anti-tip kit from the chart below.
  • R Series and Legacy Dual Fuel Ranges prior to serial number 17287990 need only the angle wall brace to secure the unit.
    • The angle brace does not include mounting hardware. Use screws appropriate for the material the unit is being secured to.
  • Induction Ranges ship with the new style bracket.

Refer to the product Installation Guide for further installation information.

Use the following part numbers when replacements are needed:

ProductSerial BreakPartPart #
R Gas RangePrior to serial #17287990Angle, wall brace.816386
From #17287990 to #18022050

Anti-tip bracket attaches to the floor and wall and engages with unit bracket to prevent tipping.

821261 (anti-tip)

821262 (unit bracket)

Starting with serial #18022050Anti-tip bracket attaches to floor.

821261 (anti-tip)

821541 (unit bracket)

820609 5/8-11 X 4.00 HEX HD Bolt (sold separately)

GR Gas RangeUse regardless of serialAnti-tip bracket attaches to floor.

821261 (anti-tip)

821541 (unit bracket)

820609 5/8-11 X 4.00 HEX HD Bolt (sold separately)

IR Induction RangeUse regardless of serialAnti-tip bracket attaches to floor.829936 (anti-tip)
Legacy IR Induction RangeUse regardless of serialAnti-tip bracket attaches to floor.821261 (anti-tip)
Dual Fuel RangeUse regardless of serialAnti-tip bracket attaches to floor.829936 (anti-tip)
Legacy Dual Fuel RangePrior to serial #17287990Angle, wall brace.816386

30", 48", 60" From #17287990 to #18021738

36" From#17287990 to #17288011

Anti-tip attaches to the floor and wall and engages with unit bracket to prevent tipping.

821261 (anti-tip)

821262 (unit bracket)

Legacy 30", 48", 60" Dual Fuel Range

Starting with serial #18021738

Anti-tip Bracket - Attaches to floor.

821261 (anti-tip)

821541 (unit bracket)

820609 5/8-11 X 4.00 HEX HD Bolt (sold separately)

Legacy DF36Starting with serial #17288011Anti-tip Unit Bracket Assembly - Attaches to unit.

821261 (anti-tip)

821327 (unit bracket)
