Wolf Dual Fuel (DF3050, DF3650, DF4850, DF6050) and Induction Range (IR3050, IR3650, IR3051, IR3651, IR4851) Oven Door Alignment

Topics:

  • Dual Fuel (DF3050, DF3650, DF4850, DF6050) Oven door alignment
  • How to adjust the Induction Range (IR3050, IR3650, IR3051, IR3651, IR4851)
  • Can the Induction Range Oven door be adjusted?

Answer:

The alignment of the Dual Fuel and Induction Range Oven doors can be adjusted once the unit is installed.

To adjust the door:

  1. Remove the skirt by extracting the screws.

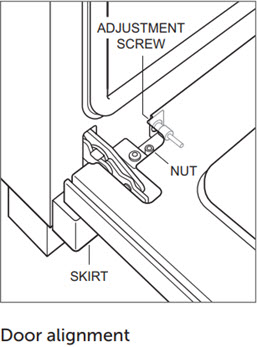

  2. Open the door, and loosen the nut. Refer to the illustration below.
  3. Close the door, and turn the screw clockwise to raise and counterclockwise to lower the door.
  4. Open the door, and tighten the nut.
  5. Close the door, and reinstall the skirt.

Refer to the product Installation Guide for further installation information.
