BI-36UID/S

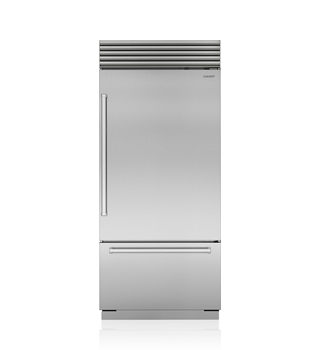

36" Built-In Over-and-Under Refrigerator/Freezer with Internal Dispenser

Sub-Zero36" Built-In Over-and-Under Refrigerator/Freezer with Internal Dispenser BI-36UID/S

Guides

Technical Specifications

Dimensions 36"W x 84"H x 24"D
Door Clearance 37 1/4"
Drawer Clearance 23 5/8"
Weight 515 lbs
Refrigerator Capacity 16.4 cu. ft.
Freezer Capacity 5.3 cu. ft.
Star-K Certified

CAD Libraries

Dimensions

Standard Installation

Electrical Requirements

Electrical Supply 115 VAC, 60 Hz
Electrical Service 15 amp dedicated circuit

Electrical Location Illustration

Plumbing Supply Illustration

Model Options

BI-36UID/S/PH-LH $10,865
BI-36UID/S/PH-RH $10,865
BI-36UID/S/TH-LH $10,765
BI-36UID/S/TH-RH $10,765

Feature Overview

- Discreet interior water dispense with advanced filtration
- LED Lighting for brighter interior
- Dual refrigeration keeps food fresher longer
- Air purification system fights spoilage, odors
- Crispers and deli drawers in low-temp, high-humidity zones for optimum freshness
- Microprocessor control assures peak performance
- Freshness cards for maximum food preservation
- Rigorously tested in our U.S. manufacturing facilities to ensure decades of use
- Exceptional 24/7 support from Madison, WI-based Customer Care team
- Over-and-under refrigerator/freezer storage
- Magnetic door seal system locks in cold air
- Automatic ice maker with "max ice" feature
- Adjustable shelves for maximum convenience

Refrigerator Specifications

- 3 Adjustable glass shelves
- 1 Stationary glass shelf
- 1 High-humidity drawer with dividers
- 1 Storage drawer with dividers
- 2 Adjustable door shelves
- 1 Stationary door shelf
- Adjustable dairy compartment

Freezer Specifications

- Full-extension roll-out freezer drawer
- Two-tier wire storage baskets
- Automatic ice maker

Accessories

- Side panel mounting kit
- Dual Installation Kit with Dual Wide Grille
- Built-In Stainless Steel Pro Louvered Grilles

Interior View
