Sub-Zero Refrigerator or Freezer Light Switch Location
Topics:
- Sub-Zero light switch location
- Where is the light switch for a refrigerator or freezer found?
- Where to find the light switch for a Sub-Zero refrigeration unit
Answer:
Switch Locations by Model
| Model | Refrigerator | Freezer |
| 200 / 300 Series Side-by-Side | Top Mainframe Behind Door Note: The left-hand switch is the light switch. Right-hand switch is the fan switch. | Top Mainframe Behind Door |
| 200 / 300 Series Over-and-Under | Top Mainframe Behind Door Note: The left-hand switch is the light switch. Right-hand switch is the fan switch.
| Behind Kickplate |
| 500 Series Side-by-Side | Top Mainframe Behind Door | Top Mainframe Behind Door |
| 500 Series Over-and-Under | Top Mainframe Behind Door Note: The left-hand switch is the light switch. Right-hand switch is the fan switch. | Back wall of freezer behind ice maker |
| Model 501* | Top Section of Unit Grille | Top Section of Unit Grille |
| 600 Series Side-by-Side | Top Mainframe Behind Door Note: The left-hand switch is the light switch. Right-hand switch is the fan switch. | Top Mainframe Behind Door Note: The left-hand switch is the light switch. Right-hand switch is the fan switch. |
| 600 Series Over-and-Under | Top Mainframe Behind Door Note: The left-hand switch is the light switch. Right-hand switch is the fan switch. | Back wall of freezer behind ice maker |
| Model 601* | Top Section of Unit Grille | Top Section of Unit Grille |
| 700 Series Upper Cabinet | Top Mainframe Behind Door In some cases, the 700 Series light switch can be on the right side.
| Top Mainframe Behind Door In some cases, the 700 Series light switch can be on the right side.
|
| 700 Series Drawers | Back wall behind drawer | Back wall of freezer behind ice maker |
| Classic Series (BI) Side-by-Side All Refrigerator All Freezer | Top Mainframe Behind Door
| Top Mainframe Behind Door
|
Classic Series French Door | Top Mainframe Behind Door

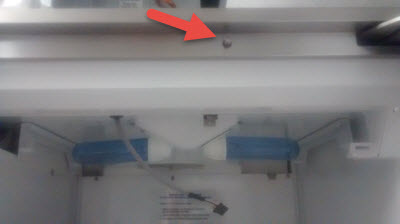

| Back wall of freezer behind ice maker Refer to Sub-Zero Over/Under Freezer Light Switch Location for an image. |
| Designer (IT, IC, ID) Column, Tall, and Drawer Models | Column and Tall upper door - Inside upper hinge Drawers - Right-hand wall behind drawers | |
.jpg)
*The grille for Models 601 and 501 are at the bottom, below the door.
For light switch replacement information, refer to Refrigerator or Freezer Light Switch Replacement.
