Sub-Zero Refrigerator or Freezer Light Switch Replacement
- Refrigerator or freezer lights do not work
- Lights will not turn on
- Light terminator shut lights off
- Lights only work if light switch is wiggled, flicked, moved
- All light bulbs replaced and the lights still do not work
- How to replace light switch, part number 7014646, 7004257, 7007259
- Function of the switch next to the light switch
- How many light switches are in the unit?
For initial troubleshooting before replacing a light switch, refer to:
Designer Series, Designer Wine Storage, PRO Series, and Undercounter Series units all require service to replace the light switch.
Other models, including Classic (BI) Series units, can sometimes be repaired without a technician.
- Side-by-Side units have light switches that are easy to replace without a service technician. Refer to the table below for part numbers and instruction sheets.
- Over/Under unit refrigerator switches are easy to repair. However, the freezer light switch requires service to replace. See also, Over/Under Unit Freezer Light Switch Location.

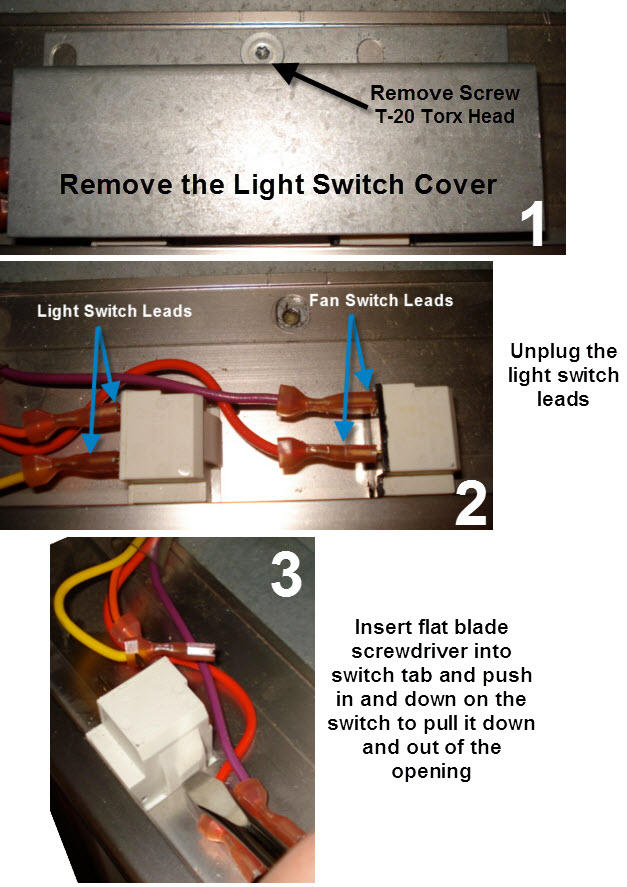

Tips to Replace a Light Switch
See light switch instructions by model below.
- Light switch instructions do not come with light switches when shipped.
- The switch is above the unit behind the grille on the 500 and 600 Series models.
- Tools required are a Phillips head screw driver, T-20 Torx head screw driver, and pliers.
- The outer grille frame may need to be removed for complete access to switches. See also, 500 and 600 Series Grille Removal and Installation.
- Make sure there is no power to the unit by turning off the circuit breaker.
- The switch wires may be very tight depending on the age of the unit. Firmly pulling the wires by hand should remove them from the light switch.
- If necessary, carefully pull at the base of the wire with a needle-nose pliers to remove the wire from the light switch.
If the lights do not work after replacing the bulbs and the switch, service is needed to expertly diagnose and repair the product. Contact Factory Certified Service to schedule an appointment for repair.
|Classic (BI) Series||7007259||Classic Series Light Switch Replacement|
|Designer Refrigeration (IT, IC, ID) Series||N/A||Must be replaced by FCS|
|Designer Wine (IW) Series||N/A||Must be replaced by FCS|
|Professional Refrigeration (PRO 48, PRO 36)||N/A||Must be replaced by FCS|
|648PRO Refrigeration Series||N/A||Must be replaced by FCS|
|UC Undercounter Series||N/A||Must be replaced by FCS|
|700 Series Upper Cabinet and IC-27 Models||7004257||700 Series Light Switch Instructions|
|700 Series Drawers||N/A||Must be replaced by FCS|
|600 Series (excluding 601)||7014646||600 Series Light Switch Instructions and|
|500 Series (excluding 501)||7014646||Light Switch Instructions and|
|501 and 601 Models||7004257||501 and 601 Models
See also, 501 and 601 Series Grille Removal
|424, 427 Models||7004257||7004257 - Light Switch Instructions|
|200 / 300 Series||7014646
7004257 - Light Switch Instructions
*The part number is the same for both the refrigerator and freezer switches.
