Sub-Zero Tubular Handle

Topics:

  • Install square standoff tubular handle
  • Handle length, depth, stud spacing, standoff height, and diameter dimensions
  • Square standoff tubular handle information
  • Instruction sheet part number 7026122
  • Installation instructions for tubular stainless steel handles, part number 7025231, 7025230, 7025229, 7025228, 7025227, 7029181, 7029174, 7030668, 7029168, 7029157
  • Standoff part numbers 7029254, 7029257

Answer:

Square Standoff Tubular Handle Installation Instructions detail the 3/4" tubular handle installation process.

  • Classic Series (BI) overlay and flush inset and Designer series (IT, IC, ID) products do not come with handles. Purchase them separately.
  • Handles mount to the panel with a long screw that secures the standoff between the panel and handle.
    • Screws are provided with the handle kit and will accommodate most custom panels.
    • Panels thicker than standard specifications may require longer screws to be purchased locally.
  • Place the handle anywhere on the custom panel.
    • Sub-Zero suggests placing handles a minimum of 1" from the vertical edge to make sure the panel does not split from the pull of the door handle.

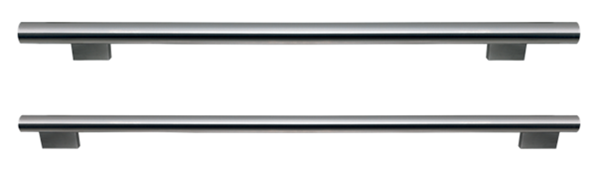

  • These tubular style stainless steel handles come with square standoffs.
    • Square standoff tubular handles mount without a set screw to either a door or drawer panel.
  • The Sub-Zero Design Guide shows a handle depth of 2-3/8" for a tubular handle. This is the depth for the Pro handle, not a tubular handle as the drawing indicates.
  • The handles ends are flat versus rounded on previous tubular handle models.
  • Standoff only part numbers also include the hardware to mount the standoff to the door.
DiameterHandle LengthStud SpacingHandle Assembly Part #Standoff Only Part #Standoff Dimensions
3/4"21-1/4"18-1/4"702523170292572-1/2" W x 1/2" H x 1" D
3/4"24-1/4"21-1/4"70252307029257
3/4"27-1/4"24-1/4"70252297029257
3/4"33-1/4"30-1/4"70252287029257
3/4"50-1/8"47-1/8"70252277029257
1"24-5/16"16-5/16"702918170292542-1/2" W x 3/4" H x 1" D
1"30-5/16"22-5/16"70291747029254
1"36-5/16"28-5/16"70306687029254
1"44-1/4"36-1/4"70291687029254
1"63-7/8"43-7/8"70291577029254

See also:

Refer to the product Installation Guide for panel installation. Contact a Local Dealer for further sales information.
